In-situ measurement of particle length distribution by FBRM with application to needle- or rod-shape crystallization processes

Abstract

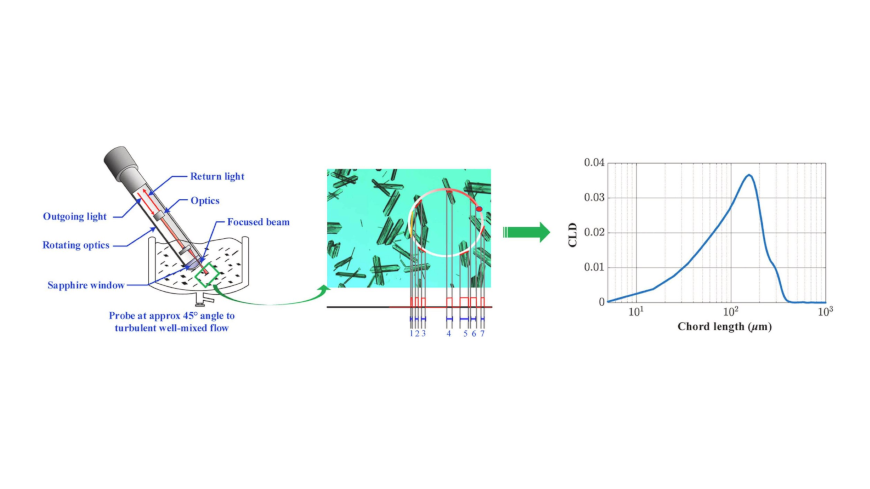

In this paper, an in-situ measurement method is proposed for detecting needle- or rod-shape particle length distribution (PLD) during a crystallization process, by using the instrument named focused beam reflectance measurement (FBRM). A data pretreatment strategy is firstly presented to modify the measured chord length distribution (CLD) of particles by FBRM for proper analysis, which could guarantee measurement accuracy when the particle length are smaller than 150 μm. Based on the pretreated CLD, a moment conversion algorithm is established for estimating the moments of particle population density, so as to further improve the measurement accuracy for particles possessing larger sizes. Correspondingly, the particle growth-nucleation model parameters are efficiently estimated by using the interior point method (IPM) in combination with the homotopy analysis method (HAM). Then the PLD is reconstructed based on these estimated low-order moments, through a modified cubic-spline interpolation algorithm with variable interpolation grids. Experimental results on the seeded cooling crystallization process of β form L-glutamic acid (LGA) well demonstrate the effectiveness of the proposed method for in-situ measurement.

DOI: https://doi.org/10.1016/j.cherd.2024.05.023
